High quality titanium m15 hexagon head bolt

High quality titanium m15 hexagon head bolt

FOB Price:

US 0.8-1.5 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shanghai or Tianjin or Qingdao

Place of Origin:

Shaanxi, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

Hanztech

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: Hanztech

Model Number: --

Place of Origin: Shaanxi, China (Mainland)
Dimensions: M3-M36*L6-300mm
Technique: CNC,forging,rolled,CNC maching
Payment: T/T,L/C,ESCROW,PAYPAL,etc
Grade: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12,Gr23
Ti Content (%): 95%
Color: Polishing, Anodizing, Black oxide or Plating color
Application: Equipment accessories: airplane, ship, bicycle, motorcycle
Name: High quality titanium m15 hexagon head bolt

Packaging & Delivery

Packaging Details: 1. plastic bag inner, wooden case outer 2. according to your requirement 3. adjustable to your order
Delivery Detail: 15-30days

Specifications

High quality titanium m15 hexagon head bolt

Specifications

Item Name	Titanium fasteners
Material	Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6AL-4V),Gr7,Gr9,Gr12, etc.
Standard	DIN,JIS,GB,ISO,ASME,etc
Specification	Nominal Dimater		M3-m64
	thread pitch (mm)	p	0.4-6
		b	16-140
		k	2-64 (max)
			1.86-63.26(min)
		s	1.56-46.33(max)
			1.52-46.08(min)
		t	1-38
Surface Treatment	Polishing, Anodizing, Black oxide or Plating color
Features	light weight, acid and alkali resistance, anti-corrosion, excellent mechanical strength etc.
Applications	1 .Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheelchair, sports, anchor, weapon, etc. 2. Aerospace,Indusrty,Navigation,Smelting,Chemical plants, and so on.

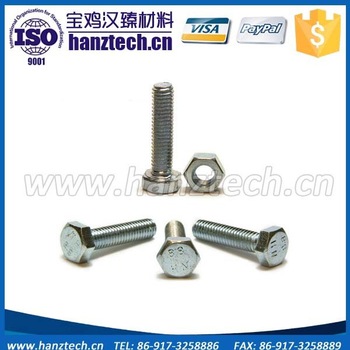

Product Show

High quality titanium m15 hexagon head bolt

Chemical Compositon

Element	Chemical Composition,%
Element	Gr1	Gr2	Gr3	Gr4	Gr5	Gr7	Gr9	Gr11	Gr12	Gr23
N max	0.03	0.03	0.05	0.05	0.05	0.03	0.03	0.03	0.03	0.05
C max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
H max	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.0125
Fe max	0.2	0.3	0.3	0.5	0.4	0.30	0.25	0.2	0.3	0.25
O max	0.18	0.25	0.35	0.4	0.2	0.25	0.15	0.18	0.25	0.13
Al max	/	/	/	/	5.5~6.75	/	2.5~3.5	/	/	5.5~6.5
V max	/	/	/	/	3.5~4.5	/	2.0~3.0	/	/	/
Pd	/	/	/	/	/	0.12~0.25	/	0.12~0.25	/	/

Mechanical Properties

grade	Tensil strength(min)		Yeild strength(min)		Elongation (%)
grade	ksi	MPa	ksi	MPa	Elongation (%)
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
9A/B	90	620	70	438	10/15
12	70	438	50	345	18

Package and Shipping

We will choose the fastest,cheapest and safest shipment way for you!

Company Infomation

High quality titanium m15 hexagon head bolt

Baoji Hanz Material Technology Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specilizes in manufacturing titanium fasteners.

Our Factory of GR2 titanium bolts m6 hexagon head bolt

Our Certificationsof GR2 titanium bolts m6 hexagon head bolt

GR2 titanium bolts m6 hexagon head bolt

Our Alibaba Trade Assurance of High quality titanium m15 hexagon head bolt
