Brand Name: Yuanda Boiler
Model Number: WNS
Place of Origin: Henan, China (Mainland)
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Style: Horizontal
Fuel: Gas-fired
Output: Hot Water
Dimension(L*W*H): 4330*2248*2564mm
Weight: 8ton
Certification: ISO9001:2008
After-sales Service Provided: Engineers available to service machinery overseas
Product name: Gas Burning 2100 KW Hot Water Heater
Thermal power: 2100KW, 2.1MW
Return/ Out water temperature: 60/85, 70/95C
Working pressure: 0bar, 7bar
Thermal efficiency: 93.5%
Gas consumption: 236Nm3/hr
Radiation heating area: 10.4m2
Convection heating area: 64.05m2
Water volume: 6.1m3
Boiler proper dimensions: 4330*2248*2564mm

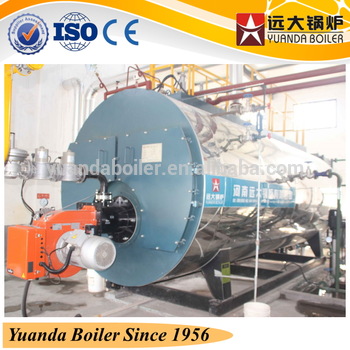

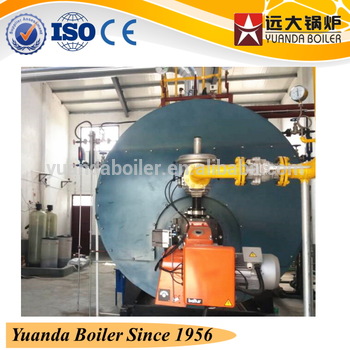

Gas Burning 2100 KW Hot Water Heater
Electrical Cabinet Burner Water Pumps Water Softener
Model:GLKZX-WQR2.8-2D Model:BGN300MC Model:TD80-38/2 Model:500*1750
Production flow is as follows,
1.Material inspection, including steel plate, seamless steel tube, rock wools, fire-proof cement, etc.
2.Rolling, automatic welding and x-ray testing of boiler drum
3.Welding wet-back smoke chamber and corrugated furnace
4.Welding spirally corrugated tubes, front and rear tube plates, base
5.Welding tube sockets of pressure gauge, water level gauge, safety valves, blow-down valve
6.Hydrostatic test the boiler drum
7.Descaling and painting boiler proper to antirust
8.Welding front and rear smoke chamber, front doors and burner connection, chimney connection
9.Package insulation layer, rock wool, and outer cover stainless steel plate.
10.Gas Burning 2100 KW Hot Water Heater
