Brand Name: ADEN
Model Number: AQR-10DS-150A
Place of Origin: Guangdong, China (Mainland)
Type: Centrifugal Fan
Electric Current Type: AC
Blade Material: Cast Iron
Mounting: Duct Fan
Power: 62W
Voltage: 220V
Air Volume: 150H 126M 100L
Speed: heat recovery ventilation
Certification: CCC, CE, ROHS
After-sales Service Provided: Engineers available to service machinery overseas
Frequency: 50Hz
Static Pressure: 100Pa
Noise: 36dB
Sensible Heat Efficiency(%): cooling load:58 heating load:79
Enthalpy Efficiency(%): cooling load:60 heating load:71
Weight: 26Kg
AQR-10DS-150A High quality ultra-slim heat recovery ventilation
ADEN make your house “breathe”

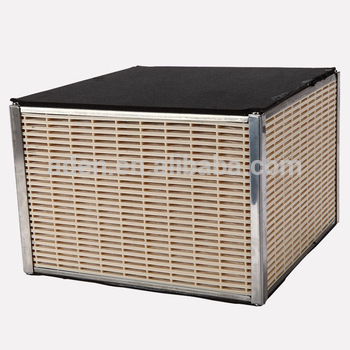

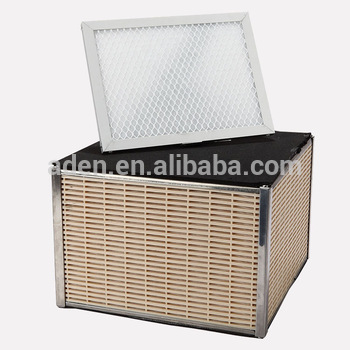

Aden ventilation system can ventilate a room on a timed, quantitative and efficient basis and improve the indoor air quality effectively relying on its peofessional and sophisticated design. The new total heat exchanger can filter outdoor fresh air and send the filtered fresh qir to bedroom, sitting romm and other places that require fresh air at most. Meanwhile, it can perform energy recovery for indoor befouled air, and discharge to outdoor through exhaust outlets arranged in toilet and corridor. It will provided you and your family with a home being able to “breath fresh air”, and will create a healthy and comforable living space to get rid of “Sick Building Syndrome”.
Our Advantage:
1.Low MOQ
2.Guaratee for motor
3.Excellent quality
4.Certification: CCC, CE, RoHS
5.We can develop new models based on your budget and specifcation
6.Powerful design according to customer's idea
Model | K | G | J | B | C | D | E | F | I | H | A | L |
AQR-10DS-150A | 732 | 437 | 405 | 200 | 88 | 592 | 50 | 55 | 402 | 180 | 82 | 98 |
AQR-10DS-250A | 732 | 437 | 405 | 200 | 88 | 592 | 50 | 55 | 402 | 180 | 82 | 98 |
AQR-15DS-350A | 700 | 543 | 510 | 260 | 123 | 597 | 50 | 55 | 266 | 240 | 140 | 148 |
AQR-15DS-500A | 700 | 543 | 510 | 260 | 123 | 597 | 50 | 55 | 266 | 240 | 140 | 148 |
Model | Voltage (V) |
Frequency (Hz) |
Power (W) |
Airflow H M L |
Static Pressure (Pa) |
Enthalpy Efficiency (%) cooling load/heating load |
Noise (dB) |
AQR-10DS-150A | 220 | 50 | 62 | 150 126 100 | 100 | 60 71 | 36 |
AQR-10DS-250A | 220 | 50 | 100 | 255 210 170 | 128 | 60 69 | 38 |
AQR-15DS-350A | 220 | 50 | 155 | 360 292 238 | 152 | 60 69.5 | 40 |
AQR-15DS-500A | 220 | 50 | 248 | 500 435 350 | 165 | 58 68 | 41 |
