Home > Products > Electric Power Distribution System > Capacitor

capacitor cbb65 cbb65 for sale other capacitor cd60

capacitor cbb65 cbb65 for sale other capacitor cd60

FOB Price:

USD 0.5-2 / Piece

Min.Order Quantity:

100 Twenty-Foot Container

Supply Ability:

10000 Twenty-Foot Container per Day

Port:

Ningbo OR Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C, T/T

Brand:

ECM

Products Model:

CBB65

Products Details
Company Profile

Quick Details

Brand Name: ECM

Model Number: CBB65

Place of Origin: Zhejiang, China (Mainland)
Type: Aluminum Electrolytic Capacitor
Application: AC / Motor
Package Type: Through Hole
Capacitance: 1-100uF
Rated Voltage: 250V
Operating Temperature: -40 -+85°C
Certificate: UL.CE.TUV
Color: Black Etc

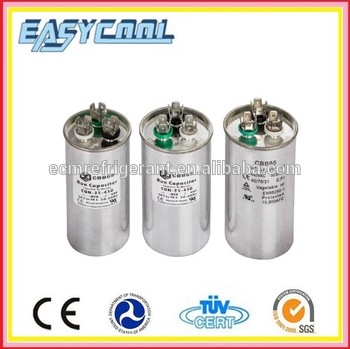

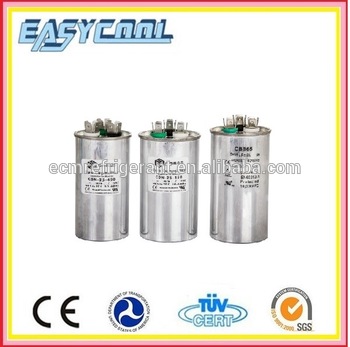

Product name: Anhui Safe CBB65 AC Motor Capacitor
Name: CBB65 Motor Run Capacitor
Capacitance tolerance: 10%
Test Voltage: T-T: 1.75Un/2s T-C:2200VAC/2s
Operating Frequency: 50/60HZ
Dissipation Factor: Tg6<0.002(100Hz
Material: Aluminum
Other names: Supercapacitor

Packaging & Delivery

Packaging Details: Capacitor package by standard carton box + carton.
Delivery Detail: Shipped in 20 days after payment

Specifications

Capacitor cbb65

Product Description

Capacitance range	1-150μf
Rated voltage Un	250v.ac/400/450V.ac
Rated frequency	50Hz;60Hz
Capacitance tolerance	±5%;±10%
Climatic category	-25+70°C
Dissipation factor(at 50Hz-Hz and 20°C)	≤0.002(100Hz,20°C)
Test voltage between terminals	2×Un for 3s
Test voltage between terminals and case	2×Un+1000VDC FOR 2s
Reference standard	EN 60252-1:2001;IEC252

Advantage

Small dissipation factor with little internal temperature rise;

High insolation resistance

Good capacitance stability

Excellent self-healing property

Anti-shock current with large overload capacity;

Small volume with light weight

Dry capacitor structure with no liquid materials, non-toxic, no leakage and environmentally friendly

Features

1.Round-shape bakelite case or aluminium case.
2.L type or U type lug or cable for connections; With the bolt and nut on the bottom or not.
3.High insulation resistance, stable performance.
4.Suitable for heat pump,freezers,refrigerators ect.and beneficial to the starting of AC motor, providing high rotary torque.

Outline Dimesions:
Capacitance Range	250-300VAC		370-400VAC		440-450VAC
Capacitance Range	Diameter(mm)	High(mm)	Diameter(mm)	High(mm)	Diameter(mm)	High(mm)
1-100μF	30-50	55-125	30-50	55-125	30-50	55-135
