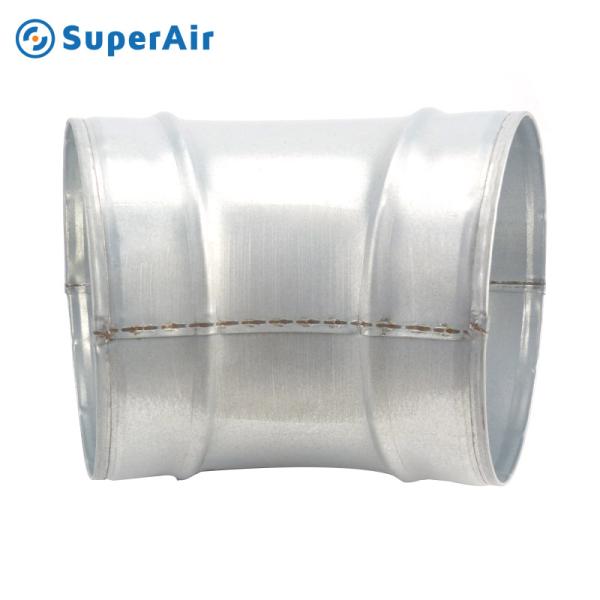

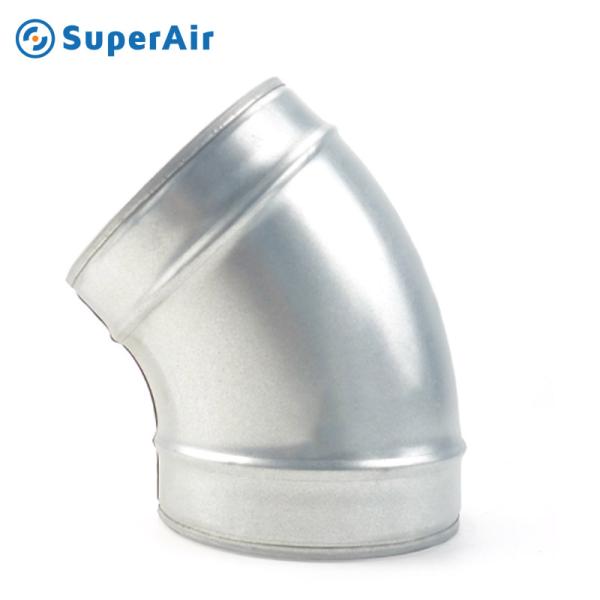

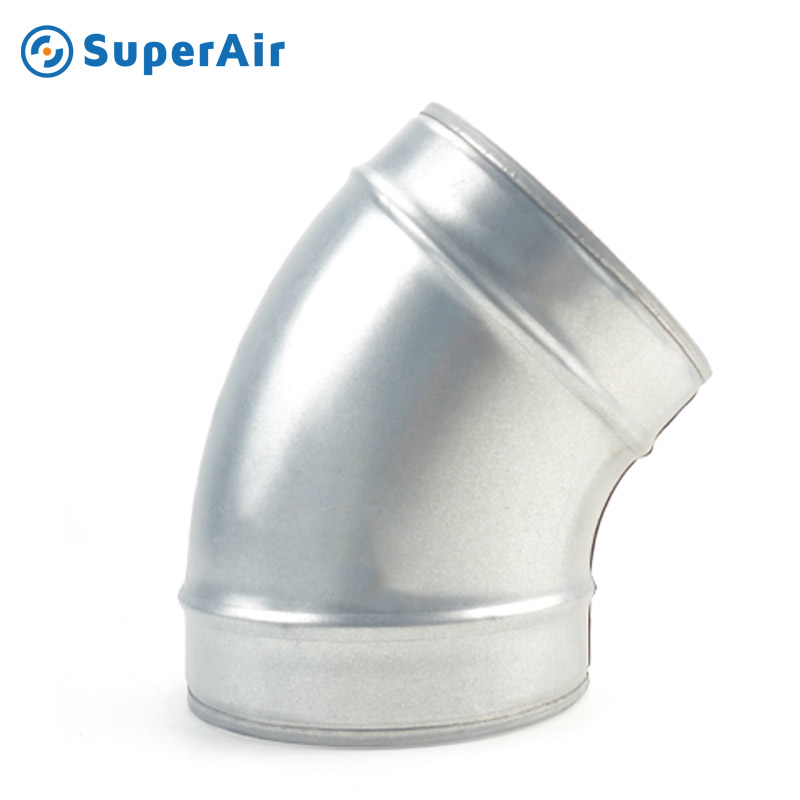

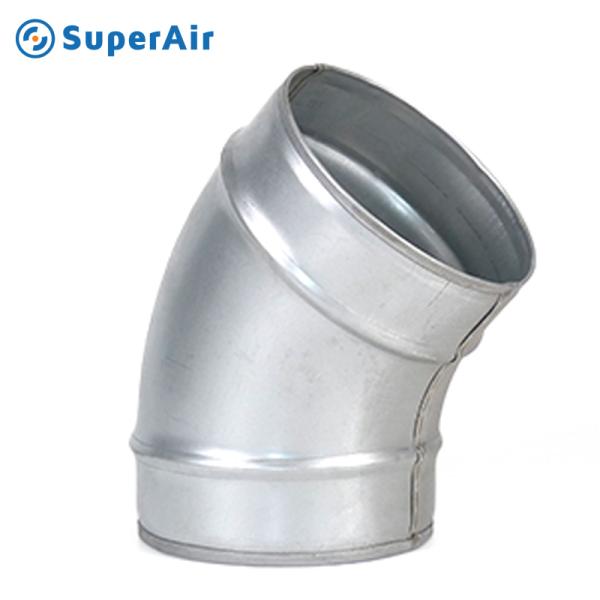

Factory Price Galvanized Steel Spiral Duct 45 Degree Elbow Bends for HVAC

Factory Price Galvanized Steel Spiral Duct 45 Degree Elbow Bends for HVAC

Spiral duct bends from 80mm dia to 200mm dia are pressed, segmented spiral duct bends start at 224mm dia upwards.
All spiral duct bends are half radius e.g. 100mm Bend = 50mm throat radius.


1. Product Introduction

• Spiral duct 45 degree Elbow is part of the Spiral fitting range; B45 is without rubber gasket, B45X is with factory-installed EPDM rubber gaskets.  The double gasket ensures tight and permanent connections between system components that are air-tight and do not require the use of mastic or sealant.
  Saves time - quick and easy installation
  Air-tight - no risk of leakage due to the class D rated EPDM rubber gaskets
  Neat - ideal for exposed areas, as no need to use sealants
  Assembling and adjusting is made easier


2.Product Parameter (Specification)

3.Product Feature And Application
Spiral duct 45 bends from 80mm dia to 200mm dia are pressed.
Our range of segmented spiral duct bends start at 224mm dia upwards.
All spiral duct bends are half radius e.g. 100mm Bend = 50mm throat radius.
All spiral duct bends for spiral duct have a male connection to fit directly inside galvanised spiral duct (secure using recommended fixing methods).
If the application requires two bends to be joined, a female coupler will be required.
Our ventilation fittings are also supplied with EPDM rubber gaskets, this creates an airtight connection. In addition to producing pressed elbows, we also offer segmented Bends, choice of 15°, 30°, 45° , 60° and 90° bends
Vent Systems Elbow 45 Degree Duct Pipe Connector Flexible Round Tube Ventilation,Easy to install - fit perfectly with any other pipe, vent and connector. Push-fit duct and fittings together.Made out of a good quality galvanized steel.
