Duplex TDF Flange Forming Machine

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

20 Set/Sets per Month

Port:

Tianjin Port

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

T/T

Brand:

COORIG

Products Model:

2-TDF-12

Products Details
Company Profile

Quick Details

Brand Name: COORIG

Model Number: 2-TDF-12

Place of Origin: Tianjin, China (Mainland)
Condition: New
Type: Pipe Production Line
Pipe Material: Galvanized steel
Application: HVAC industry
Production Capacity: 14m/min
Voltage: 380V 3PH 50Hz
Power(W): 5.5KW
Dimension(L*W*H): 2600*2300*1200
Weight: 2500 Kgs
Certification: ISO 9001
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Linear structure: small land occupation
Good quality: One year warranty
Sheet Thickness (mm): 0.6-1.2
Double: Double screw locking
Machining width (mm): 600-1250 mm or 600-1500 mm

Packaging & Delivery

Packaging Details: Fumigated wood case or container.
Delivery Detail: 15 Days after confirmation of P/I and receive 30% deposit.

Specifications

Product Description

Duplex TDF Flange Forming Machine

Main features of Duplex TDF Flange Forming Machine:

Flanges can be produced on both sides of machine and width of sheets can be adjusted between 600mm to 1250mm or 600mm to 1500mm
screw locking
working speed is 14m/min

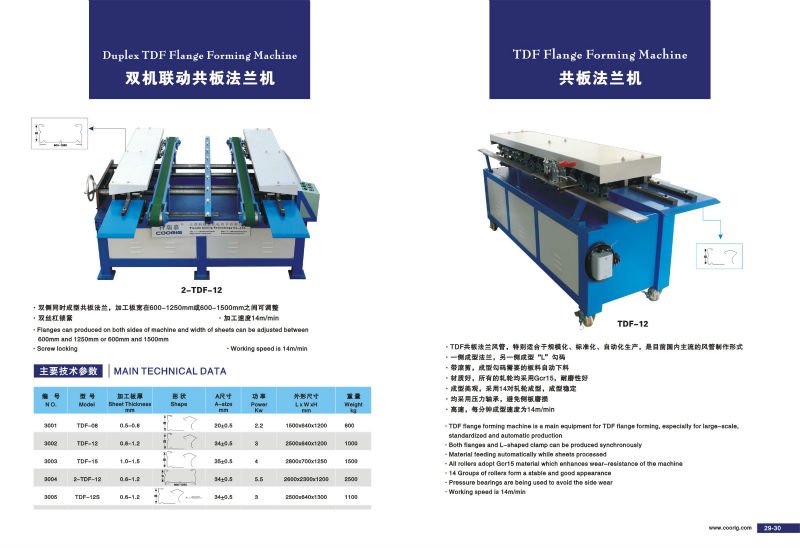

Technical data for TDF corner

Main technical data:

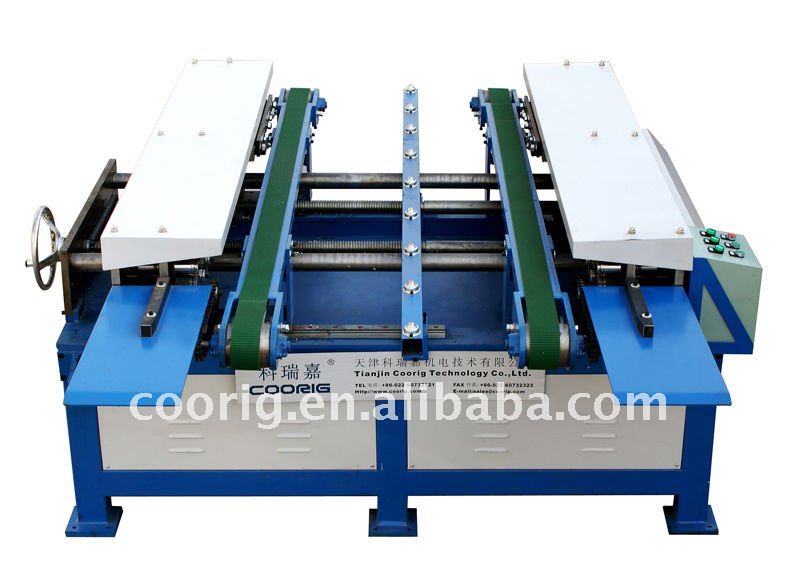

Appearance of the machine:

Certificate:

Packaging & Shipping

Packaging Detail: Fumigated wood case or container.
Delivery Detail: 15 Days after confirmation of P/I and receive 30% deposit.

Our Services

After service and maintenance
The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ ,MSN .email ,remote assistance ,and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance.

Company Information

Tianjin COORIG Technology Co., Ltd. was established in 2004 which is a professional manufacturer for HVAC duct processing equipments and sheet metal forming equipments, our company has passed the ISO9000 certification and BV certification, develop a stable, efficient and automated product is our responsibility.

COORIG uphold the “automation”, “fast and efficient service” as the core concept, always insist on technological innovation, independent research and development of new products to meet the diverse needs of customers, we have obtained the patents for national utility models. The company’s core products are auto duct line series and CNC plasma cutting machine series. Our products not only has a large market share in our domestic market, but also exported to Russia, India, Brazil, Australia, the Middle East, Southeast Asia, South America etc in 24 countries and regions.

Services create value, Technology leading the trend, Professional achieved the future, select COORIG is your vision!

Tianjin Coorig Technology Co., Ltd. was established in 2004.which is a professional manufacturer and supplier for varous HVAC Duct forming machines in Tianjin, China. our company has passed ISO9000 certification and is the member of China Refrigeration Association and China Association of installation.
The company's headquarter is located in Jinghai economic developing zone, Tinjin, China. the factory covers an area of 8000 square meters , a standard industrial plant of 6000 square meters. currently we have 140 staff. our Hubei production base covers an area of 40000 square meters with standard industrial plant of 16000 square meters and an independent office building of 4000 square meters. our company has set up the direct sales offices in Singapore, Australia, Beijing, Shanghai Chengdu, Wuhan. Shandong, Shenyang, Harbin, Taiyuan, Zhengzhou, Guangzhou and Lanzhou etc to provide sales and after-sales service to our customers in China and abroad. we uphold the "product automation" and "fast and efficient service"as the core concept and always adhere to technological innovation, independent research and development of new products to meet the diverse needs of customers; Value creating services, technology leading the treand, processional achieve the future, Coorig is your trusted partner!!
